Description:
Main Specifications

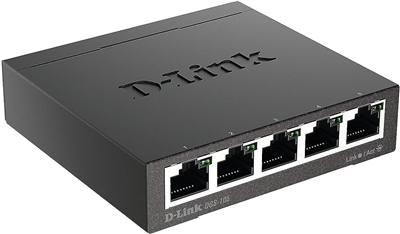

Product Description D-Link DGS 105 - switch - 5 ports
Device Type Switch - 5 ports
Subtype Gigabit Ethernet
Ports 5 x 10/100/1000
MAC Address Table Size 8K entries
Features Flow control, auto-sensing per device, auto-negotiation, packet filtering, store and forward
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x
Dimensions (WxDxH) 7.8 in x 4.5 in x 1.2 in
Weight 1.1 lbs
Manufacturer Warranty 5-year warranty
General
Device Type Switch - 5 ports
Enclosure Type Desktop
Subtype Gigabit Ethernet
Ports 5 x 10/100/1000
MAC Address Table Size 8K entries
Features Flow control, auto-sensing per device, auto-negotiation, packet filtering, store and forward
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x
Status Indicators Power, link/activity
Expansion / Connectivity
Interfaces 5 x 1000Base-T RJ-45
Manufacturer Warranty
Service & Support Limited warranty - 5 years
Miscellaneous
Compliant Standards FCC Class B certified, CSA
Power
Power Device External power adapter
Power Consumption Operational 4.5 Watt
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 - 95%
Dimensions & Weight
Width 7.8 in
Depth 4.5 in
Height 1.2 in
Weight 1.1 lbs
