Description:Main Specifications

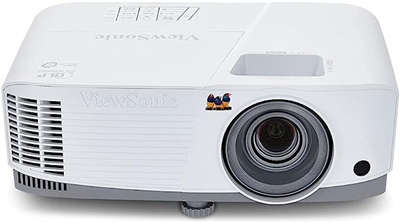

Product Description ViewSonic PA503S - DLP projector - 3D
Device Type DLP projector
3D Capable Yes (3D glasses sold separately)
Built-in Devices Keypad
Bundled Services 1 year Express Exchange Service
Brightness 3800 ANSI lumens
Contrast Ratio 22000:1 (dynamic)
Resolution SVGA (800 x 600)
Native Aspect Ratio 4:3
Color Support 1.07 billion colors
Lamp Type 190 Watt
Lamp Life Cycle Up to 5000 hour(s) - normal mode ¦ Up to 15000 hour(s) - economic mode
Speakers Speaker(s) - integrated
Power AC 120/230 V (50/60 Hz)
Power Consumption Operational 260 Watt
Dimensions (WxDxH) 11.6 in x 8.6 in x 4.3 in
Weight 4.85 lbs
Manufacturer Warranty 3-year warranty
General
Device Type DLP projector
3D Capable Yes (3D glasses sold separately)
Built-in Devices Keypad
Bundled Services 1 year Express Exchange Service
Expansion / Connectivity
Interfaces 2 x VGA input - 15 pin HD D-Sub (HD-15) ¦ 1 x composite video input - RCA ¦ 1 x HDMI input - 19 pin HDMI Type A ¦ 1 x USB - 4 pin mini-USB Type B (management) ¦ 1 x serial RS-232 - 9 pin D-Sub (DB-9) (management) ¦ 1 x VGA output - 15 pin HD D-Sub (HD-15) ¦ 1 x audio line-in - mini-phone 3.5 mm ¦ 1 x audio line-out - mini-phone 3.5 mm
Manufacturer Warranty
Service & Support Limited warranty - parts and labor - 3 years ¦ Limited warranty - lamp - 1 year
Miscellaneous
Included Accessories Wireless remote control
Cables Included 1 x VGA cable
Security Features Security lock slot (cable lock sold separately)
Security Slot Type Kensington security slot
Compliant Standards ICES-003, FCC, cTUVus
Power
Power Source AC
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 260 Watt
Power Consumption Stand by 0.5 Watt
Software / System Requirements
Software Included ViewSonic Wizard
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Video Input
Video Interfaces VGA, HDMI, composite video
Dimensions & Weight
Width 11.6 in
Depth 8.6 in
Height 4.3 in
Weight 4.85 lbs
Dimensions & Weight (Shipping)
Shipping Width 14.4 in
Shipping Depth 11.8 in
Shipping Height 7.4 in
Shipping Weight 7.05 lbs
Projector
Brightness 3800 ANSI lumens
Contrast Ratio 22000:1 (dynamic)
Image Size 29.9 in - 300 in
Projection Distance 4 ft - 43 ft
Throw Ratio 1.96 - 2.15:1
Resolution SVGA - SVGA (800 x 600) (native) / 1920 x 1200 (resized)
Native Aspect Ratio 4:3
Color Support 1.07 billion colors
Max Sync Rate (V x H) 120 Hz x 102 kHz
Lamp Type 190 Watt
Lamp Life Cycle Up to 5000 hour(s) - normal mode ¦ Up to 15000 hour(s) - economic mode
Controls & Adjustments Keystone correction, zoom, focus
Features 6-segment color wheel, SuperEco, ViewSonic SuperColor, elevation feet
Lens
Focus Type Manual
Zoom Type Manual
Zoom Factor 1.1x
Keystone Correction Direction Vertical
Vertical Keystone Correction -40 / +40
Speakers
Type Integrated
Sound Output Mode Mono
Output Power / Channel 2 Watt
Speakers 1 x mixed channel
