Description:Specifications
Main Specifications

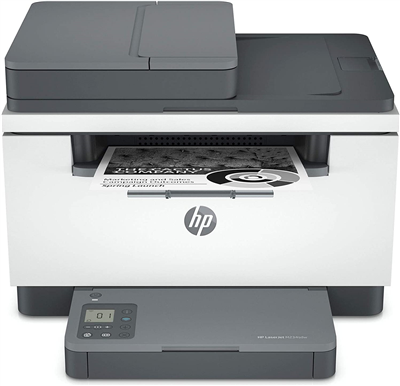

Product Description HP LaserJet MFP M234sdw - multifunction printer - B/W
Device Type Multifunction printer
Localization English, French, Spanish / Canada, Mexico, United States, Latin America (excluding Argentina, Brazil, Chile)
Printing Technology Laser (monochrome)
Monthly Duty Cycle (max) 20000 pages
Recommended Monthly Volume 200 - 2000 pages
Max Copying Speed Up to 30 ppm
Max Copying Resolution Up to 600 x 600 dpi
Max Printing Speed Up to 30 ppm
Max Printing Resolution Up to 600 x 600 dpi
Scanning 600 x 1200 dpi
Display 1.6"
Original Size Legal (8.5 in x 14 in) (max)
Original Type Sheets
Document Feeder Capacity 40 sheets
Media Size 4 in x 6 in (min) - 8.5 in x 14 in (max)
Media Type Envelopes, plain paper, bond paper
Standard Media Capacity 150 sheets
Max Media Capacity 150 sheets
Output Trays Capacity 100 sheets
Automatic Duplexing Yes (copying) Yes (printing)
Connection Availability Yes
Interface USB 2.0, LAN, Wi-Fi(n)
Office Machine Features Scan to e-mail, scan to PC, HP Auto-On/Auto-Off Technology, print from mobile devices, scan to PDF
Power AC 120 V (50/60Hz)
Dimensions (WxDxH) 16.5 in x 12.1 in x 11.6 in
Weight 20.94 lbs
Enclosure Color Light basalt
Environmental Standards ENERGY STAR Qualified, Blue Angel, EPEAT Silver
Manufacturer Warranty 1-year warranty
General
Device Type Multifunction printer
Printing Technology Laser - monochrome
Monthly Duty Cycle (max) 20000 pages
Recommended Monthly Volume 200 - 2000 pages
Display Diagonal Size 1.6"
Display Features Icon LCD display
Connection Availability Yes
Interface USB 2.0, LAN, Wi-Fi(n)
Office Machine Features Scan to e-mail, scan to PC, HP Auto-On/Auto-Off Technology, print from mobile devices, scan to PDF
Enclosure Color Light basalt
Localization English, French, Spanish / Canada, Mexico, United States, Latin America (excluding Argentina, Brazil, Chile)
Memory
Standard Memory 64 MB
Max Supported Memory 64 MB
Manufacturer Warranty
Service & Support Limited warranty - 1 year
Miscellaneous
Warm-Up Time 45 sec
First Copy Out Time B/W 7.7 sec
Consumables Included 1 x cartridge (black) - up to 700 pages
Compliant Standards UL, TUV GS, BSMI, CCC, FCC, IEC 60825-1, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, EN 60825-1, KC, EAC, EN 62479:2010, RCM, Blue Angel Ecolabel, BIS, EN 61000-3-3:2013, EN 62311:2008, EN 61000-3-2:2014, IEC 60950-1:2005 + A1:2009 + A2:2013, IEC 62479:2010, IEC 62311:2007, EN 55032:2012, RSS-102 Issue 5, RSS-247 Issue 1, FCC CFR47 Part 15 E, ICES-003 issue 6, EN 62368-1:2014, CAN/CSA-C22.2 No. 62368-1, CISPR 32:2012, EN 300 328 V2.1.1, UL 62368-1, CISPR 32:2015, EN 55032:2015+AC:2016 Class B, RED 2014/53/EU, EN 55035:2017, Mercury-free, EN 301 893 V2.1.1, DE-UZ 205, EN 301 489-17 V3.2.0, IEC 62368-1: 2014, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, EN 301 489-1 V2.2.3
Power
Voltage Required AC 120 V (50/60Hz)
Power Consumption Operational 453 Watt
Power Consumption Sleep 0.6 Watt
Environmental Parameters
Sound Emission 51 dBA (operating)
Min Operating Temperature 59 °F
Max Operating Temperature 90.5 °F
Humidity Range Operating 10 - 80%
Connections
Interfaces 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x LAN - RJ-45
Security Protocols & Features SSL, TLS, IPv6 support, SNMP 3
Operating System Support Linux, MS Windows Server 2008 R2 x64 Edition, MS Windows Server 2012 x64 Edition, MS Windows Server 2008 R2 x64 Edition SP1, MS Windows Server 2012 R2 x64 Edition, MS Windows 7 (32/64 bits), Windows 8 (32/64-bits), Windows 8.1 (32/64-bits), Windows 10 (32/64-bits), macOS 10.13, MS Windows Server 2016 x64 Edition, macOS 10.14, macOS 10.15
Copying
Max Copying Speed Up to 30 ppm
Max Copying Resolution Up to 600 x 600 dpi
Max Document Enlargement 400%
Max Document Reduction 25%
Maximum Copies 99
Automatic Duplexing Yes
Copying Features ID Card Copy
Printing
Max Printing Resolution Up to 600 x 600 dpi
Max Printing Speed Up to 30 ppm
Printer Drivers / Emulations PCLms, URF, PWG
Automatic Duplexing Yes
Scanning
Optical Resolution 600 x 1200 dpi
Color Depth 24-bit
Document & Media Handling
Max Original Size Legal (8.5 in x 14 in)
Original Type Sheets
Document Feeder Capacity 40 sheets
Min Media Size 4 in x 6 in
Max Media Size Legal
Min Media Weight 60 g/m²
Max Media Weight 163 g/m²
Min Media Weight (lb) 16 lbs
Max Media Weight (lb) 43 lbs
Supported Media Type Envelopes, plain paper, bond paper
Supported Media Sizes Legal (8.5 in x 14 in), A4 (8.25 in x 11.7 in), A5 (5.83 in x 8.25 in), B5 (6.93 in x 9.83 in), 4 in x 6 in, B6 (4.92 in x 6.93 in)
Standard Media Capacity 150 sheets
Max Media Capacity 150 sheets
Output Trays Capacity 100 sheets
Document & Media Handling Details Input tray - 150 sheets size: 4 in x 6 in - 8.5 in x 14 in weight: 60 g/m² - 163 g/m²; weight (lbs): 16 lbs - 43 lbs ¦ Output tray - 100 sheets size: 4 in x 6 in - 8.5 in x 14 in weight: 60 g/m² - 163 g/m²; weight (lbs): 16 lbs - 43 lbs
Speed Details Printing: up to 29 ppm (A4) - B/W normal ¦ Printing: up to 30 ppm (Letter A) - B/W normal ¦ Printing: up to 17 ppm (A4) - B/W duplex ¦ Printing: up to 18 ppm (Letter A) - B/W duplex ¦ Printing: up to 7 ppm (A5) - B/W portrait ¦ Copying: up to 29 ppm (A4) - B/W normal ¦ Copying: up to 30 ppm (Letter A) - B/W normal
Dimensions & Weight
Width 16.5 in
Depth 12.1 in
Height 11.6 in
Weight 20.94 lbs
Dimensions & Weight (Shipping)
Shipping Width 19.6 in
Shipping Depth 14.9 in
Shipping Height 16.1 in
Shipping Weight 27.45 lbs
Environmental Standards
EPEAT Compliant EPEAT Silver
ENERGY STAR Certified Yes
Blue Angel Compliant Yes
