Description:These affordable firewalls let small businesses and home offices take full advantage of high-speed broadband, without compromising the highly effective protection needed to stop cyberattacks.
All SonicWall firewalls use patented Reassembly-Free Deep Packet Inspection to examine traffic simultaneously across all ports without introducing latency to the network, enabling businesses to realize increased productivity gains.
Flexible connectivity options provide easy-to-use, secure, high-speed office-to-office and client-to-office remote access. With IPSec VPN, users can also connect with a SonicWall Global VPN Client.
Intuitive set-up wizards and a powerful web interface ease deployment, simplify configuration, and streamline management to reduce administration time and costs.
Organizations and educational institutions can easily enforce their acceptable-use policies and protect against inappropriate, illegal and dangerous web content through content and URL filtering.
A tightly integrated intrusion prevention engine protects against a comprehensive array of application-layer exploits that target both servers and client machines on the network.
By blocking Trojans, viruses, key loggers and other malware at the gateway, SonicWall Gateway Anti-Virus and Anti-Spyware provides the first layer of defense.
Main Specifications

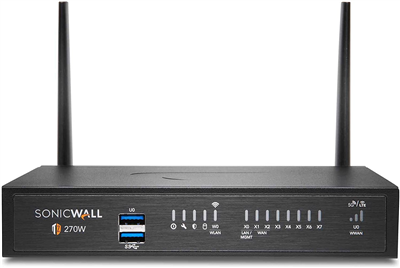

Product Description SonicWall TZ270 - High Availability - security appliance
Device Type Security appliance
Form Factor Desktop
Data Link Protocol Gigabit Ethernet
Performance Firewall throughput: 2 Gbps ¦ Threat prevention throughput: 750 Mbps ¦ Application throughput: 1 Gbps ¦ IPS throughput: 1 Gbps ¦ Anti-malware throughput: 750 Mbps ¦ TLS/SSL inspection and decryption throughput: 300 Mbps ¦ VPN throughput (IPSec): 750 Mbps ¦ Connection rate: 6000 connections per second
Capacity Virtual interfaces (VLANs): 64 ¦ SSL VPN licenses: 1 (maximum 50) ¦ VPN tunnels (site-to-site): 50 ¦ IPSec VPN clients: 5 (maximum 200) ¦ SPI connections: 750000 ¦ DPI connections: 150000 ¦ DPI SSL connections: 25000 ¦ Single Sign-On (SSO) users: 1000 ¦ Manageable access points: 16
VoIP Protocols SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5
Power AC 120/230 V (50/60 Hz)
Dimensions (WxDxH) 7.5 in x 5.3 in x 1.4 in
Weight 28.92 oz
General
Device Type Security appliance
Width 7.5 in
Depth 5.3 in
Height 1.4 in
Weight 28.92 oz
Expansion / Connectivity
Interfaces 6 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-T - RJ-45 (WAN) ¦ 2 x USB 3.0 - Type A ¦ 1 x console - RJ-45
Miscellaneous
MTBF 51.1 years
Compliant Standards FCC Class B certified, UL, TUV GS, C-Tick, BSMI, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FIPS 140-2 Level 2, EMC, RoHS, ICES Class B, KCC, WEEE, REACH, LVD, VCCI Class B, MSIP, CoC, Common Criteria
Networking
Form Factor Desktop
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet
Network / Transport Protocol TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP
Routing Protocol OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR)
Remote Management Protocol SNMP 2, SNMP 3, HTTP, HTTPS, SSH, CLI
Performance Firewall throughput: 2 Gbps ¦ Threat prevention throughput: 750 Mbps ¦ Application throughput: 1 Gbps ¦ IPS throughput: 1 Gbps ¦ Anti-malware throughput: 750 Mbps ¦ TLS/SSL inspection and decryption throughput: 300 Mbps ¦ VPN throughput (IPSec): 750 Mbps ¦ Connection rate: 6000 connections per second
Capacity Virtual interfaces (VLANs): 64 ¦ SSL VPN licenses: 1 (maximum 50) ¦ VPN tunnels (site-to-site): 50 ¦ IPSec VPN clients: 5 (maximum 200) ¦ SPI connections: 750000 ¦ DPI connections: 150000 ¦ DPI SSL connections: 25000 ¦ Single Sign-On (SSO) users: 1000 ¦ Manageable access points: 16
Status Indicators Power, test mode, link/activity, SSD activity, secure
Features Firewall protection, NAT support, VPN support, PAT support, VLAN support, Stateful Packet Inspection (SPI), DoS attack prevention, content filtering, port mirroring, IPv6 support, antivirus analysis, Deep Packet Inspection (DPI), DDos attack prevention, anti-spam protection, Quality of Service (QoS), Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), Jumbo Frames support, DHCP server, bandwidth control, IPv4 support, Common Access Card (CAC) reader support, DHCP relay, 3G/4G USB Dongle Support, NetFlow, Single Sign-On (SSO) support, VLAN trunking, SD-WAN support
Encryption Algorithm DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES
Authentication Method RADIUS, LDAP, XAUTH authentication
Power
Power Device External power adapter
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 16.84 Watt
Power Provided 36 Watt
Software / System Requirements
OS Provided SonicOS 7.0
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 - 95% (non-condensing)
Dimensions & Weight (Shipping)
Shipping Weight 3.11 lbs
IP Telephony
VoIP Protocols SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5
