Description:Main Specifications

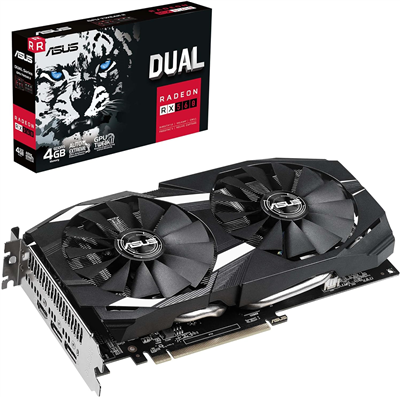

Product Description ASUS Dual Radeon RX 560 - graphics card - Radeon RX 560 - 4 GB
Device Type Graphics card
Bus Type PCI Express 3.0
Graphics Engine AMD Radeon RX 560
Memory 4 GB GDDR5
Memory Speed 6.8 Gbps
Core Clock 1199 MHz
Stream Processors 1024
Memory Interface 128-bit
Max Resolution 5120 x 2880
Max Monitors Supported 3
Interfaces Details HDMI ¦ 2 x DisplayPort
API Supported OpenGL 4.5
Dimensions (WxDxH) 1.6 in x 9.5 in x 5 in
General
Device Type Graphics card
Bus Type PCI Express 3.0
Graphics Engine AMD Radeon RX 560
Core Clock 1199 MHz
Stream Processors 1024
Max Resolution 5120 x 2880
Max Monitors Supported 3
Interfaces Details HDMI ¦ 2 x DisplayPort
API Supported OpenGL 4.5
Features Dual Slot Fan Cooler, Native HDMI, ASUS DirectCU II Technology, Dust-proof fan, Super Alloy Power II technology, AUTO-EXTREME technology, Wing-Blade Fans, GPU Tweak II, 0dB Technology, Dual ball Bearing Fans, HDCP
Memory
Size 4 GB
Technology GDDR5 SDRAM
Memory Speed 6.8 Gbps
Bus Width 128-bit
Miscellaneous
Software Included Display drivers, ASUS GPU Tweak II, AMD Radeon Software
Compliant Standards IP5X, DisplayPort 1.4, HDCP 2.2
Width 1.6 in
Depth 9.5 in
Height 5 in
System Requirements
Required Power Supply 450 W
Additional Requirements 8 pin PCI Express power connector
