Description:Main Specifications

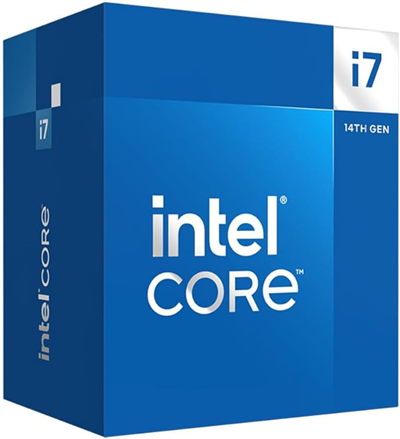

Product Description Intel Core i7 i7-14700 / 2.1 GHz processor - Box
Product Type Processor
Processor Type Intel Core i7 i7-14700 (14th Gen)
Number of Cores 20-core / 28 threads
Cache 33 MB
Integrated Graphics Intel UHD Graphics 770
Compatible Processor Socket FCLGA1700 Socket
Processor Qty 1
Clock Speed 2.1 GHz (P-core) / 1.5 GHz (E-core)
Max Turbo Speed 5.4 GHz (P-core) / 4.2 GHz (E-core)
Manufacturing Process 10 nm
Features Enhanced SpeedStep technology, Hyper-Threading Technology, Execute Disable Bit capability, Intel Virtualization Technology, Intel 64 Technology, Intel Trusted Execution Technology, streaming SIMD extensions 4.1, streaming SIMD extensions 4.2, Intel Turbo Boost Technology 2.0, Intel AES New Instructions (AES-NI), Thermal Monitoring Technologies, Intel Virtualization Technology for Directed I/O (VT-d), Idle States, Intel VT-x with Extended Page Tables (EPT), Intel Secure Key, Intel Advanced Vector Extensions 2 (AVX2.0), Intel OS Guard, Intel Turbo Boost Max Technology 3.0, Intel Speed Shift Technology, Mode-based Execute Control (MBE), Intel Volume Management Device (VMD), Intel Boot Guard, Intel Deep Learning Boost (DL Boost), Intel Control-Flow Enforcement Technology, Intel Gaussian and Neural Accelerator 3.0, Intel Thread Director, Instruction Set 64-bit, Intel Standard Manageability (ISM)
Manufacturer Warranty 3-year warranty
General
Product Type Processor
Manufacturer Warranty
Service & Support Limited warranty - 3 years
Miscellaneous
Package Type Intel Boxed
Processor
Type / Form Factor Intel Core i7 i7-14700 (14th Gen)
Number of Cores 20-core
Number of Threads 28 threads
Cache 33 MB
Cache Memory Details Smart Cache - 33 MB ¦ L2 - 28 MB
Processor Qty 1
Clock Speed 2.1 GHz (P-core) / 1.5 GHz (E-core)
Max Turbo Speed 5.4 GHz (P-core) / 4.2 GHz (E-core)
Compatible Processor Socket FCLGA1700 Socket
Manufacturing Process 10 nm
Thermal Design Power 219 W
Thermal Specification 100 °C
PCI Express Revision 4.0/5.0
PCI Express Configurations 1x16+4, 2x8+4
PCI Express Lanes Qty 20
Architecture Features Enhanced SpeedStep technology, Hyper-Threading Technology, Execute Disable Bit capability, Intel Virtualization Technology, Intel 64 Technology, Intel Trusted Execution Technology, streaming SIMD extensions 4.1, streaming SIMD extensions 4.2, Intel Turbo Boost Technology 2.0, Intel AES New Instructions (AES-NI), Thermal Monitoring Technologies, Intel Virtualization Technology for Directed I/O (VT-d), Idle States, Intel VT-x with Extended Page Tables (EPT), Intel Secure Key, Intel Advanced Vector Extensions 2 (AVX2.0), Intel OS Guard, Intel Turbo Boost Max Technology 3.0, Intel Speed Shift Technology, Mode-based Execute Control (MBE), Intel Volume Management Device (VMD), Intel Boot Guard, Intel Deep Learning Boost (DL Boost), Intel Control-Flow Enforcement Technology, Intel Gaussian and Neural Accelerator 3.0, Intel Thread Director, Instruction Set 64-bit, Intel Standard Manageability (ISM)
Integrated Graphics
Type Intel UHD Graphics 770
Base Frequency 300 MHz
Max Dynamic Frequency 1.6 GHz
Max Supported Resolution 5120x3200@120Hz (eDP), 7680x4320@60Hz (DP), 4096x2160@60Hz (HDMI)
Features Intel Clear Video HD Technology, Intel Quick Sync Video, Quad Display Capable
