Description:
Main Specifications

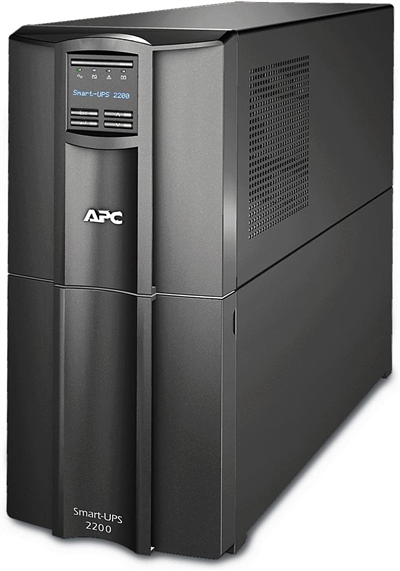

Product Description APC Smart-UPS SMT2200C - UPS - 1.98 kW - 2200 VA - with APC SmartConnect
Device Type UPS - external
Weight 112.24 lbs
Localization Canada, United States
Input Voltage AC 110/120/127 V
Output Voltage AC 110/120/127 V ± 5%
Power Capacity 1.98 kW / 2200 VA
Input Connectors 1 x power NEMA 5-20P
Output connectors 8 x power NEMA 5-15 ¦ 2 x power NEMA 5-20
Battery Lead acid
Batteries Qty 1
Run Time (Up To) 10.1 min at full load
Networking RS-232, USB
Color Black
Dimensions (WxDxH) 7.7 in x 21.5 in x 17 in
Environmental Standards ENERGY STAR
Manufacturer Warranty 3-year warranty
Bundled with APC SmartConnect
General
Device Type UPS - external
Color Black
Localization Canada, United States
Bundled with APC SmartConnect
Expansion / Connectivity
Interfaces 1 x management (RS-232) ¦ 1 x USB ¦ 1 x EPO (emergency power off)
Expansion Slots 1 (total) / 1 (free) x SmartSlot
Manufacturer Warranty
Service & Support Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years
Miscellaneous
Cables Included Serial cable - external ¦ USB cable - external ¦ Power cable 6 ft
Features Audible alarm, emergency power off, LCD display, Automatic Voltage Regulation (AVR), cold-start function, automatic self-test, predicitive failure notification, hot-swappable batteries, energy meter
Compliant Standards CSA, UL 1449, UL 1778, FCC Part 15 A
Networking
Remote Management Interface RS-232, USB
Software / System Requirements
Software Included Drivers & Utilities
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 0 - 95%
Sound Emission 45 dBA
Battery
Quantity 1
Technology Lead acid
Run Time (Up To) 10.1 min at full load ¦ 28.3 min at half load ¦ 587 min at 50 Watts ¦ 339 min at 100 Watts ¦ 175 min at 200 Watts ¦ 113 min at 300 Watts ¦ 82 min at 400 Watts ¦ 63 min at 500 Watts ¦ 51.3 min at 600 Watts ¦ 42.4 min at 700 Watts ¦ 35.8 min at 800 Watts ¦ 30.8 min at 900 Watts ¦ 26.8 min at 1000 Watts ¦ 20.8 min at 1200 Watts ¦ 16.7 min at 1400 Watts ¦ 13.6 min at 1600 Watts ¦ 11.2 min at 1800 Watts
Recharge Time 3 hours
Transfer Time 6 ms
Features Maintenance free, sealed, leak-proof
Power Device
UPS Technology Line interactive
Input Voltage AC 110/120/127 V
Input Voltage Range AC 82 - 144 V
Input Voltage Range (Adjustable) AC 75 - 154 V
Frequency Provided 50/60 Hz ± 3%
Frequency Required 50/60 Hz ± 3%
Input Connectors 1 x power NEMA 5-20P
Power Output Connectors Details 8 x power NEMA 5-15 ¦ 2 x power NEMA 5-20
Output Voltage AC 110/120/127 V ± 5% - 50/60 Hz
Power Capacity 1.98 kW / 2200 VA
Output Waveform Sinewave
Surge Suppression Yes
Surge Energy Rating 530 Joules
Circuit Protection Circuit breaker
Dimensions & Weight
Width 7.7 in
Depth 21.5 in
Height 17 in
Weight 112.24 lbs
Dimensions & Weight (Shipping)
Shipping Width 15 in
Shipping Depth 30 in
Shipping Height 22 in
Shipping Weight 134.28 lbs
Environmental Standards
ENERGY STAR Yes
