Description:Main Specifications

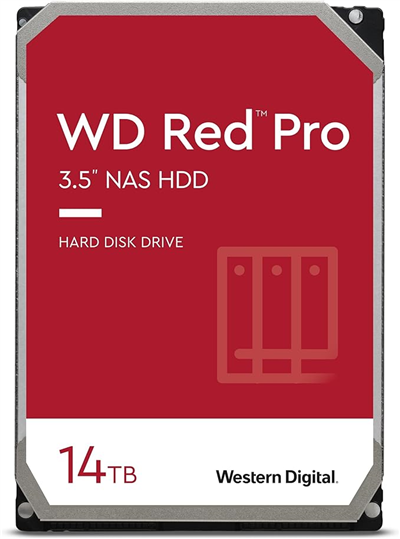

Product Description WD Red Pro WD142KFGX - hard drive - 14 TB - SATA 6Gb/s
Type Hard drive - internal
Capacity 14 TB
Form Factor 3.5"
Interface SATA 6Gb/s
Data Transfer Rate 600 MBps
Buffer Size 512 MB
Spindle Speed 7200 rpm
Features Native Command Queuing (NCQ), Advanced Format technology, 3D Active Balance Plus, Multi-axis shock sensor, Error Recovery Control, Conventional magnetic recording (CMR), NASware 3.0 technology, S.M.A.R.T.
Dimensions (WxDxH) 4 in x 5.8 in x 1 in
Weight 24.34 oz
Manufacturer Warranty 5-year warranty
General
Device Type Hard drive - internal
Capacity 14 TB
Form Factor 3.5"
Interface SATA 6Gb/s
Buffer Size 512 MB
Features Native Command Queuing (NCQ), Advanced Format technology, 3D Active Balance Plus, Multi-axis shock sensor, Error Recovery Control, Conventional magnetic recording (CMR), NASware 3.0 technology, S.M.A.R.T.
Width 4 in
Depth 5.8 in
Height 1 in
Weight 24.34 oz
Manufacturer Warranty
Service & Support Limited warranty - 5 years
Miscellaneous
Compliant Standards RoHS
Power
Power Consumption 6.4 Watt (read) ¦ 6.4 Watt (write) ¦ 3.6 Watt (idle) ¦ 0.9 Watt (standby) ¦ 0.9 Watt (sleep)
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 149 °F
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Shock Tolerance (operating) 50 g @ 2 ms
Shock Tolerance (non-operating) 250 g @ 2 ms
Sound Emission 20 dBA
Performance
Drive Transfer Rate 600 MBps (external)
Internal Data Rate 265 MBps
Spindle Speed 7200 rpm
Reliability
MTBF 2,500,000 hours
24x7 Operation Yes
Non-Recoverable Errors 10 per 10^15
Load / Unload Cycles 600,000
Expansion & Connectivity
Interfaces 1 x SATA 6 Gb/s
Compatible Bay 3.5"
