Description:Main Specifications

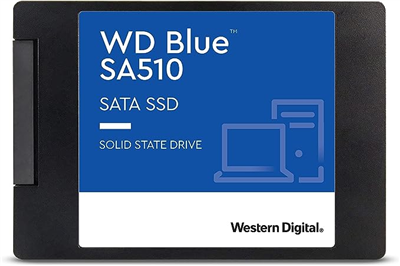

Product Description WD Blue SA510 WDS100T3B0A - SSD - 1 TB - SATA 6Gb/s
Type Solid state drive - internal
Capacity 1 TB
Form Factor 2.5"
Interface SATA 6Gb/s
Data Transfer Rate 600 MBps
Enclosure Color Blue
Dimensions (WxDxH) 2.7 in x 3.9 in x 0.3 in
Weight 1.22 oz
Manufacturer Warranty 5-year warranty
General
Device Type Solid state drive - internal
Capacity 1 TB
Form Factor 2.5"
Interface SATA 6Gb/s
Width 2.7 in
Depth 3.9 in
Height 0.3 in
Weight 1.22 oz
Manufacturer Warranty
Service & Support Limited warranty - 5 years
Miscellaneous
Compliant Standards UL, TUV, VCCI, BSMI, FCC, KC, Morocco
Enclosure Color Blue
Power
Power Consumption 60 mW (active) ¦ 1800 mW (read) ¦ 2000 mW (write) ¦ 36 mW (sleep) ¦ 12 mW (DevSleep)
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 158 °F
Shock Tolerance (operating) 1500 g @ 0.5 ms half-sine
Vibration Tolerance (operating) 5 gRMS @ 10-2000 Hz
Vibration Tolerance (non-operating) 4.9 gRMS @ 7-800 Hz
Performance
SSD Endurance 400 TB
Drive Transfer Rate 600 MBps (external)
Internal Data Rate 560 MBps (read) / 520 MBps (write)
4KB Random Read 90000 IOPS
4KB Random Write 82000 IOPS
Reliability
MTBF 1,750,000 hours
Software & System Requirements
Software Included Acronis True Image, Dropbox Professional (free for 3 months)
Expansion & Connectivity
Interfaces 1 x SATA 6 Gb/s
Compatible Bay 2.5"
