Description:Main Specifications

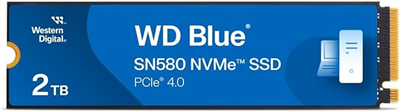

Product Description WD Blue SN580 - SSD - 2 TB - PCIe 4.0 x4 (NVMe)
Type Solid state drive - internal
Capacity 2 TB
Form Factor M.2 2280
Interface PCIe 4.0 x4 (NVMe)
Features nCache 4.0 technology
Dimensions (WxDxH) 0.9 in x 3.1 in x 0.1 in
Weight 0.19 oz
Manufacturer Warranty 5-year warranty
General
Device Type Solid state drive - internal
Capacity 2 TB
Form Factor M.2 2280
Interface PCIe 4.0 x4 (NVMe)
Features nCache 4.0 technology
Width 0.9 in
Depth 3.1 in
Height 0.1 in
Weight 0.19 oz
Manufacturer Warranty
Service & Support Limited warranty - 5 years
Miscellaneous
Compliant Standards UL, TUV, VCCI, BSMI, FCC, KCC, RCM, Morocco, CAN ICES-3(B)/NMB3(B)
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 185 °F
Min Storage Temperature -40 °F
Max Storage Temperature 185 °F
Performance
SSD Endurance 900 TB
Internal Data Rate 4150 MBps (read) / 4150 MBps (write)
4KB Random Read 600000 IOPS
4KB Random Write 750000 IOPS
Expansion & Connectivity
Interfaces 1 x PCI Express 4.0 x4 (NVMe) - M.2 Card
Compatible Bay M.2 2280
