Description:
Main Specifications

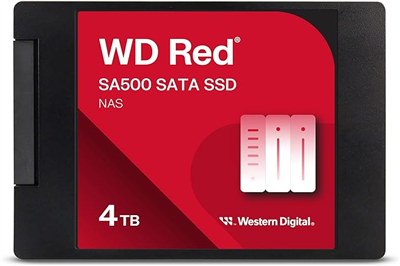

Product Description WD Red SA500 WDS400T2R0A - SSD - 4 TB - SATA 6Gb/s
Type Solid state drive - internal
Capacity 4 TB
Form Factor 2.5"
Interface SATA 6Gb/s
Data Transfer Rate 600 MBps
Features 24x7 continuous operation, 3D NAND Technology
Dimensions (WxDxH) 2.7 in x 3.9 in x 0.3 in
Weight 1.22 oz
Manufacturer Warranty 5-year warranty
General
Device Type Solid state drive - internal
Capacity 4 TB
Form Factor 2.5"
Interface SATA 6Gb/s
Features 24x7 continuous operation, 3D NAND Technology
Width 2.7 in
Depth 3.9 in
Height 0.3 in
Weight 1.22 oz
Manufacturer Warranty
Service & Support Limited warranty - 5 years
Miscellaneous
Compliant Standards UL, TUV, VCCI, BSMI, FCC, KC, RCM, Morocco, UKCA, CB Scheme
Power
Power Consumption 100 mW (active) ¦ 3000 mW (read) ¦ 3000 Watt (write) ¦ 70 mW (sleep) ¦ 7 mW (DevSleep)
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 158 °F
Min Storage Temperature -67 °F
Max Storage Temperature 185 °F
Shock Tolerance (non-operating) 1500 g @ 0.5 ms half-sine
Vibration Tolerance (operating) 5 g @ 10-2000 Hz
Vibration Tolerance (non-operating) 4.9 g @ 7-800 Hz
Performance
SSD Endurance 2500 TB
Drive Transfer Rate 600 MBps (external)
Internal Data Rate 560 MBps (read) / 520 MBps (write)
4KB Random Read 87000 IOPS
4KB Random Write 83000 IOPS
Reliability
MTBF 2,000,000 hours
24x7 Operation Yes
Seek Errors 1 per 10^17
Expansion & Connectivity
Interfaces 1 x SATA 6 Gb/s
Compatible Bay 2.5"
