Description:Main Specifications

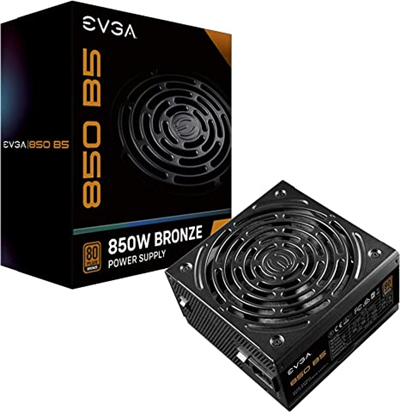

Product Description EVGA 850 B5 - power supply - 850 Watt
Device Type Power supply - internal
Specification Compliance ATX12V / EPS12V
80 PLUS Certification 80 PLUS Bronze
Weight 5 lbs
Input Voltage AC 100-240 V
Output Voltage +3.3, +5, ±12 V
Power Capacity 850 Watt
Output connectors 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 3 x 4 pin internal power ¦ 9 x 15 pin Serial ATA power ¦ 1 x 4 pin mini-power connector
Modular Cable Management Yes
Cooling System 135 mm fan
Dimensions (WxDxH) 5.9 in x 5.9 in x 3.4 in
Manufacturer Warranty 5-year warranty
General
Device Type Power supply - internal
Specification Compliance ATX12V / EPS12V
PSU Form Factor ATX
Manufacturer Warranty
Service & Support Limited warranty - 5 years
Miscellaneous
MTBF 100,000 hour(s)
Cooling System 135 mm fan
Features Overheat protection, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, ECO Intelligent Thermal Control System, Eco-Mode, fluid dynamic bearing cooling fan, fully modular
Compliant Standards TUV, CB, FCC, RoHS, WEEE, cTUVus, RCM, ErP Lot 3 2014 Ready
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Power Device
Input Voltage AC 100-240 V
Frequency Required 50 - 60 Hz
Power Output Connectors Details 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 3 x 4 pin internal power ¦ 9 x 15 pin Serial ATA power ¦ 1 x 4 pin mini-power connector
Output Voltage +3.3, +5, ±12 V
Power Capacity 850 Watt
Output Current +3.3V - 24 A ¦ +5V - 24 A ¦ +12V - 70.8 A ¦ -12V - 0.5 A ¦ +5VSB - 3 A
Efficiency 85%
Modular Cable Management Yes
80 PLUS Certification 80 PLUS Bronze
Dimensions & Weight
Width 5.9 in
Depth 5.9 in
Height 3.4 in
Weight 5 lbs
