Description:Specifications
Main Specifications

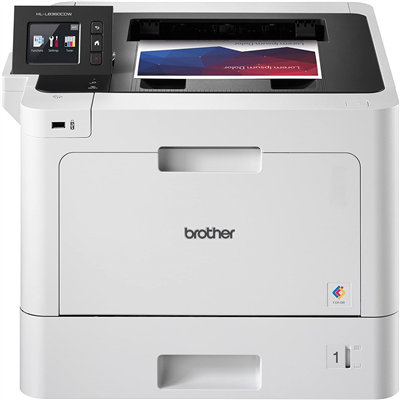

Product Description Brother HL-L8360CDW - printer - color - laser
Printer Type Workgroup printer - laser - color
Weight 48.06 lbs
Localization United States
Media Size Class A4/Legal
Max Media Size Legal (8.5 in x 14 in), A4 (8.25 in x 11.7 in)
Min Media Size (Custom) 3 in x 5 in
Max Media Size (Custom) 8.5 in x 14 in
Print Speed Up to 33 ppm - B/W - Letter A Size (8.5 in x 11 in) ¦ Up to 33 ppm - color - Letter A Size (8.5 in x 11 in) ¦ Up to 31 ppm - B/W - A4 (8.25 in x 11.7 in) ¦ Up to 31 ppm - color - A4 (8.25 in x 11.7 in) ¦ Up to 14 spm - B/W duplex ¦ Up to 14 spm - color duplex
Max Resolution (B&W) 2400 x 600 dpi
Max Resolution (Color) 2400 x 600 dpi
Max Resolution Class (B&W) 2400 x 600 dpi
Max Resolution Class (Color) 2400 x 600 dpi
Automatic Duplexing Yes
Interface USB 2.0, Gigabit LAN, Wi-Fi(n), USB host, NFC
AirPrint Enabled Yes
Preview Screen Size 2.7"
Processor 800 MHz
RAM Installed (Max) 512 MB
Language Simulation PCL 6, BR-Script3, PDF 1.7, XPS 1.0
Media Type Envelopes, labels, plain paper, bond paper, recycled paper, thick paper, thin paper, glossy paper
Total Media Capacity 300 sheets
Media Handling 250-sheet input tray, 50-sheet multipurpose tray
Monthly Duty Cycle (max) 60000 pages
Recommended Monthly Volume 4000 pages
Networking Print server
Power AC 120 V
System Requirements Linux, Android, Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Apple iOS, Windows 8 (32/64 bits), Microsoft Windows Server 2008 R2 (64-bits), Windows 8.1 (32/64 bits), Apple MacOS X 10.10, Microsoft Windows Server 2012 (64-bit), Microsoft Windows Server 2012 R2 (64-bit), Windows 10 (32/64 bits), Windows Phone, Apple MacOS X 10.11, Microsoft Windows Server 2016, Apple macOS 10.12, Windows 10 in S mode, Apple macOS 10.13, Apple macOS Mojave 10.14
Manufacturer Warranty 1-year warranty
Dimensions (WxDxH) 17.4 in x 19.1 in x 12.3 in
General
Printer Type Workgroup printer - laser - color
Localization United States
Expansion / Connectivity
Connections 1 x Gigabit LAN - RJ-45 ¦ 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x USB host - 4 pin USB Type A
Manufacturer Warranty
Service & Support Limited warranty - 1 year
Miscellaneous
Consumables Included 1 x toner cartridge (black) - up to 3000 pages ¦ 1 x toner cartridge (cyan) - up to 1800 pages ¦ 1 x toner cartridge (magenta) - up to 1800 pages ¦ 1 x toner cartridge (yellow) - up to 1800 pages ¦ 1 x drum - up to 30000 pages - Brother DR431CL ¦ 1 x transfer belt - up to 50000 pages - Brother BU330CL ¦ 1 x waste toner collector - up to 50000 pages - Brother WT320CL
Printer
Print Speed Up to 33 ppm - B/W - Letter A Size (8.5 in x 11 in) ¦ Up to 33 ppm - color - Letter A Size (8.5 in x 11 in) ¦ Up to 31 ppm - B/W - A4 (8.25 in x 11.7 in) ¦ Up to 31 ppm - color - A4 (8.25 in x 11.7 in) ¦ Up to 14 spm - B/W duplex ¦ Up to 14 spm - color duplex
Built-in Devices Touch screen
Preview Screen Size 2.7"
Connectivity Technology Wireless
Interface USB 2.0, Gigabit LAN, Wi-Fi(n), USB host, NFC
AirPrint Enabled Yes
Max Resolution (B&W) 2400 x 600 dpi
Max Resolution (Color) 2400 x 600 dpi
Max Resolution Class (B&W) 2400 x 600 dpi
Max Resolution Class (Color) 2400 x 600 dpi
Automatic Duplexing Yes
PostScript Support Standard
First Print Out Time B/W 15 sec
First Print Out Time Color 15 sec
Language Simulation PCL 6, BR-Script3, PDF 1.7, XPS 1.0
Media Handling 250-sheet input tray, 50-sheet multipurpose tray
Processor
Processor 800 MHz
RAM
RAM Installed (Max) 512 MB
Media Handling
Media Type Envelopes, labels, plain paper, bond paper, recycled paper, thick paper, thin paper, glossy paper
Media Size Class A4/Legal
Max Media Size Legal (8.5 in x 14 in), A4 (8.25 in x 11.7 in)
Min Media Size (Custom) 3 in x 5 in
Max Media Size (Custom) 8.5 in x 14 in
Media Sizes Letter A Size (8.5 in x 11 in), Legal (8.5 in x 14 in), Executive (7.25 in x 10.5 in), A4 (8.25 in x 11.7 in), A5 (5.83 in x 8.25 in), A6 (4.13 in x 5.83 in), Folio (8.5 in x 13 in)
Envelope Sizes International DL (4.33 in x 8.66 in), Com-10 (4.13 in x 9.5 in), International C5 (6.38 in x 9 in), Monarch (3.87 in x 7.5 in)
Media Weight 60 g/m² - 162 g/m²
Media Weight (lbs) 16 lbs (Bond) - 43 lbs (Bond)
Total Media Capacity 300 sheets
Media Feeders Input tray: 1 x automatic - 250 sheets - Legal (8.5 in x 14 in) weight: 60 g/m² - 105 g/m² - (16 lbs (Bond) (min) - 28 lbs (Bond) (max)) ¦ Multi-purpose tray: 1 x automatic - 50 sheets - Legal (8.5 in x 14 in) weight: 60 g/m² - 162 g/m² - (16 lbs (Bond) (min) - 43 lbs (Bond) (max))
Output Trays Capacity 150 sheets
Duty Cycle
Monthly Duty Cycle (max) 60000 pages
Recommended Monthly Volume 4000 pages
Networking
Networking Print server
Remote Management Protocol SNMP 1, Telnet, SNMP 3, IPP, SNMP 2c, HTTP, HTTPS, TFTP, IPPS
Security Protocols & Features Kerberos, SSL, LEAP, WEP, WPA-PSK, TLS, IPsec, 802.1x, WPA2-PSK, TKIP, AES, ARP, Wi-Fi Direct, TTLS, PEAP
Power
Power Device Power supply - internal
Voltage Required AC 120 V
Frequency Required 50/60 Hz
Power Consumption Operational 600 Watt
Power Consumption Stand by 75 Watt
Power Consumption Sleep 9.5 Watt
Software / System Requirements
OS Required Linux, Android, Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Apple iOS, Windows 8 (32/64 bits), Microsoft Windows Server 2008 R2 (64-bits), Windows 8.1 (32/64 bits), Apple MacOS X 10.10, Microsoft Windows Server 2012 (64-bit), Microsoft Windows Server 2012 R2 (64-bit), Windows 10 (32/64 bits), Windows Phone, Apple MacOS X 10.11, Microsoft Windows Server 2016, Apple macOS 10.12, Windows 10 in S mode, Apple macOS 10.13, Apple macOS Mojave 10.14
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 89.6 °F
Humidity Range Operating 20 - 80% (non-condensing)
Sound Emission (Operating) 49 dBA
Sound Emission (Quiet Mode) 44 dBA
Dimensions & Weight
Width 17.4 in
Depth 19.1 in
Height 12.3 in
Weight 48.06 lbs
Dimensions & Weight (Shipping)
Width (Shipping) 22 in
Depth (Shipping) 24.5 in
Height (Shipping) 20.5 in
Weight (Shipping) 57.1 lbs
Environmental Standards
ENERGY STAR Yes
