Description:
Main Specifications

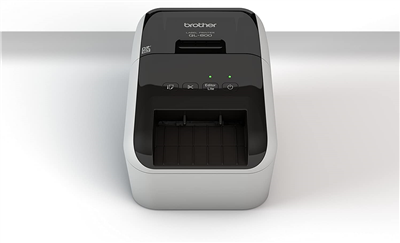

Product Description Brother QL-800 - label printer - B/W - direct thermal
Printer Type Label printer - direct thermal - B/W
Weight 2.54 lbs
Localization United States
Max Media Size Roll (2.4 in)
Max Media Size (Custom) 2.4 in
Print Speed Up to 93 labels/min ¦ Up to 349.6 inch/min
Max Resolution (B&W) 300 x 600 dpi
Max Resolution Class (B&W) 300 x 600 dpi
Cutter Yes
Interface USB 2.0
Barcodes Code 39, UCC/EAN-128, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Postnet, PDF417, Data Matrix, Truncated PDF417, Micro QR code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded, GS1 DataBar Expanded Stacked, GS1 DataBar Limited, GS1 DataBar Composites, GS1 DataBar Stacked, ITF 2 of 5, EAN-8, EAN-13, GS1-128, ISBN-2, ISBN-5
Media Type Continuous labels, die cut labels
Compatible Tapes DK tape
Styles & Effects Vertical, mirror
Power AC 120 V
System Requirements Microsoft Windows 7, Microsoft Windows Vista, Windows 8, Windows 8.1, Windows 10, Apple MacOS X 10.11.x, Apple MacOS X 10.10.5, Apple macOS 10.12.x, Apple macOS 10.13.x
Enclosure Color Black, white
Manufacturer Warranty 2-year warranty
Dimensions (WxDxH) 4.9 in x 8.4 in x 5.6 in
General
Printer Type Label printer - direct thermal - monochrome
Enclosure Color Black, white
Localization United States
Expansion / Connectivity
Connections 1 x USB 2.0
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Miscellaneous
Cables Included 1 x USB cable
Media Included DK-1201 die-cut standard address labels (100 labels), DK-2251 62 mm continuous length black/red on white paper tape 5 m
Printer
Print Speed Up to 93 labels/min ¦ Up to 349.6 inch/min
Connectivity Technology Wired
Interface USB 2.0
Max Resolution (B&W) 300 x 600 dpi
Max Resolution Class (B&W) 300 x 600 dpi
Styles & Effects Vertical, mirror
Auto Cutter Yes
Barcodes Code 39, UCC/EAN-128, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Postnet, PDF417, Data Matrix, Truncated PDF417, Micro QR code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded, GS1 DataBar Expanded Stacked, GS1 DataBar Limited, GS1 DataBar Composites, GS1 DataBar Stacked, ITF 2 of 5, EAN-8, EAN-13, GS1-128, ISBN-2, ISBN-5
Media Handling
Media Type Continuous labels, die cut labels
Compatible Tapes DK tape
Max Media Size Roll (2.4 in)
Max Media Size (Custom) 2.4 in
Media Sizes Roll (2.4 in)
Max Printing Width 2.3 in
Max Printing Length 36 in
Media Feeders 1 x manual - 1 roll - Roll (2.4 in)
Power
Power Device Power supply - internal
Voltage Required AC 120 V
Frequency Required 60 Hz
Software / System Requirements
Software Included P-touch Address Book 1.2 for Windows, P-touch Editor 5.1 for Mac OS, Brother P-touch Update Software, Brother P-touch Editor 5.2
OS Required Microsoft Windows 7, Microsoft Windows Vista, Windows 8, Windows 8.1, Windows 10, Apple MacOS X 10.11.x, Apple MacOS X 10.10.5, Apple macOS 10.12.x, Apple macOS 10.13.x
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 95 °F
Humidity Range Operating 20 - 80%
Dimensions & Weight
Width 4.9 in
Depth 8.4 in
Height 5.6 in
Weight 2.54 lbs
Dimensions & Weight (Shipping)
Width (Shipping) 7.2 in
Depth (Shipping) 10.5 in
Height (Shipping) 9 in
Weight (Shipping) 4.63 lbs
Environmental Standards
ENERGY STAR Yes
