Description:
Main Specifications

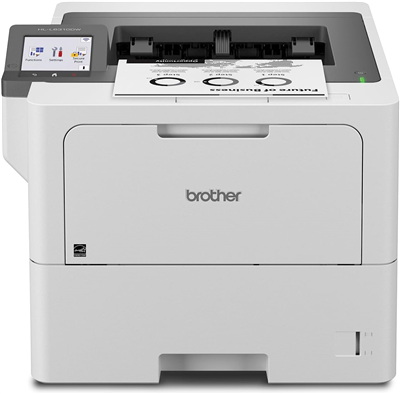

Product Description Brother HL-L6310DW - printer - B/W - laser
Printer Type Workgroup printer - laser - B/W
Weight 28.88 lbs
Media Size Class A4/Legal
Max Media Size Legal (8.5 in x 14 in), A4 (8.25 in x 11.7 in)
Min Media Size (Custom) 2.75 in x 5 in
Max Media Size (Custom) 8.5 in x 14 in
Print Speed Up to 52 ppm - B/W (ISO/IEC 24734) - Letter A Size (8.5 in x 11 in) ¦ Up to 50 ppm - B/W (ISO/IEC 24734) - A4 (8.25 in x 11.7 in) ¦ Up to 24 spm - B/W duplex - Letter A Size (8.5 in x 11 in) ¦ Up to 24 spm - B/W duplex - A4 (8.25 in x 11.7 in)
Max Resolution (B&W) 1200 x 1200 dpi
Max Resolution Class (B&W) 1200 x 1200 dpi
Automatic Duplexing Yes
Interface USB 2.0, Gigabit LAN, Wi-Fi(n), NFC, USB 2.0 host
RAM Installed (Max) 512 MB
Language Simulation PCL 6, BR-Script3, IBM ProPrinter XL, EPSON FX-850, PDF 1.7, XPS 1.0
Media Type Envelopes, labels, plain paper, bond paper, recycled paper, thick paper, thin paper, thicker paper, letterheaded paper, colored paper
Total Media Capacity 620 sheets
Media Handling 100-sheet multipurpose tray, 520-sheet input tray
Networking Print server
Power AC 110-120 V
System Requirements Google Chrome OS, Windows 10 Home (32/64 bits), Windows 10 Pro (32/64 bits), Windows 10 Enterprise (32/64 bits), Windows 10 Education (32/64 bits), Microsoft Windows Server 2016 (64-bit), Microsoft Windows Server 2019 (64-bit), Windows 11 Pro, Windows 11 Home, Microsoft Windows Server 2022, Apple macOS 12, Windows 11 Education, Windows 11 Enterprise, Apple macOS 11, Microsoft Windows Server 2012 R2 (64 bits), Microsoft Windows Server 2012 (64-bit), Apple macOS 13
Dimensions (WxDxH) 15.8 in x 15.6 in x 12.6 in
General
Printer Type Workgroup printer - laser - monochrome
Expansion / Connectivity
Connections 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x Gigabit LAN ¦ 1 x USB 2.0 host - 4 pin USB Type A
Miscellaneous
Consumables Included 1 x toner cartridge (black) - up to 6000 pages ISO/IEC 19752
Printer
Print Speed Up to 52 ppm - B/W (ISO/IEC 24734) - Letter A Size (8.5 in x 11 in) ¦ Up to 50 ppm - B/W (ISO/IEC 24734) - A4 (8.25 in x 11.7 in) ¦ Up to 24 spm - B/W duplex - Letter A Size (8.5 in x 11 in) ¦ Up to 24 spm - B/W duplex - A4 (8.25 in x 11.7 in)
Built-in Devices 3.5 inch LCD touch screen
Connectivity Technology Wireless
Interface USB 2.0, Gigabit LAN, Wi-Fi(n), NFC, USB 2.0 host
Max Resolution (B&W) 1200 x 1200 dpi
Max Resolution Class (B&W) 1200 x 1200 dpi
Automatic Duplexing Yes
First Print Out Time B/W 6.7 sec
Language Simulation PCL 6, BR-Script3, IBM ProPrinter XL, EPSON FX-850, PDF 1.7, XPS 1.0
Media Handling 100-sheet multipurpose tray, 520-sheet input tray
RAM
RAM Installed (Max) 512 MB
Media Handling
Media Type Envelopes, labels, plain paper, bond paper, recycled paper, thick paper, thin paper, thicker paper, letterheaded paper, colored paper
Media Size Class A4/Legal
Max Media Size Legal (8.5 in x 14 in), A4 (8.25 in x 11.7 in)
Min Media Size (Custom) 2.75 in x 5 in
Max Media Size (Custom) 8.5 in x 14 in
Media Sizes Letter A Size (8.5 in x 11 in), Legal (8.5 in x 14 in), Executive (7.25 in x 10.5 in), A4 (8.25 in x 11.7 in), A5 (5.83 in x 8.25 in), A6 (4.13 in x 5.83 in), Folio (8.5 in x 13 in), JIS B5 (7.17 in x 10.12 in), 7.68 in x 10.63 in
Envelope Sizes International DL (4.33 in x 8.66 in), Com-10 (4.13 in x 9.5 in), International C5 (6.38 in x 9 in), Monarch (3.87 in x 7.5 in)
Media Weight 60 g/m² - 230 g/m²
Media Weight (lbs) 16 lbs - 60 lbs
Total Media Capacity 620 sheets
Media Feeders Input tray: 1 x automatic - 520 sheets - Legal (8.5 in x 14 in) weight: 60 g/m² - 163 g/m² - (16 lbs (min) - 43 lbs (max)) ¦ Multi-purpose tray: 1 x automatic - 100 sheets - 8.5 in x 14 in weight: 60 g/m² - 230 g/m² - (16 lbs (min) - 60 lbs (max)) ¦ Output tray: 1 - 250 sheets
Output Trays Capacity 250 sheets
Networking
Networking Print server
Remote Management Protocol SNMP 1, Telnet, SNMP 3, IPP, SNMP 2c, HTTP, HTTPS, TFTP, IPPS, SMTP, ICMP, DHCP, Syslog
Security Protocols & Features Kerberos, SSL, WEP, WPA-PSK, TLS, IPsec, 802.1x, WPA2-PSK, TKIP, AES, WPS, Wi-Fi Direct, EAP-TTLS, EAP-TLS, PEAP, EAP-FAST, EAP-MD5, IPv6 support, SNMP 3, WPA3-Enterprise, WPA3-SAE, IPv4 support, SMTP, WPA3-Personal
Power
Power Device Power supply - internal
Voltage Required AC 110-120 V
Frequency Required 50/60 Hz
Power Consumption Operational 720 Watt
Power Consumption Stand by 31 Watt
Power Consumption Sleep 5.8 Watt
Software / System Requirements
OS Required Google Chrome OS, Windows 10 Home (32/64 bits), Windows 10 Pro (32/64 bits), Windows 10 Enterprise (32/64 bits), Windows 10 Education (32/64 bits), Microsoft Windows Server 2016 (64-bit), Microsoft Windows Server 2019 (64-bit), Windows 11 Pro, Windows 11 Home, Microsoft Windows Server 2022, Apple macOS 12, Windows 11 Education, Windows 11 Enterprise, Apple macOS 11, Microsoft Windows Server 2012 R2 (64 bits), Microsoft Windows Server 2012 (64-bit), Apple macOS 13
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 90.5 °F
Humidity Range Operating 20 - 80% (non-condensing)
Sound Emission (Idle) 35 dBA
Sound Emission (Operating) 54 dBA
Sound Emission (Quiet Mode) 50 dBA
Dimensions & Weight
Width 15.8 in
Depth 15.6 in
Height 12.6 in
Weight 28.88 lbs
Environmental Standards
ENERGY STAR Yes
