Description:
Main Specifications

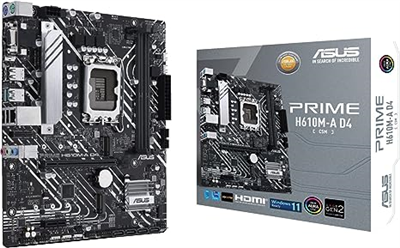

Product Description ASUS PRIME H610M-A D4-CSM - motherboard - micro ATX - LGA1700 Socket - H610
Product Type Motherboard - micro ATX
Chipset Type Intel H610
Processor Socket 1 x LGA1700 Socket
Compatible Processors (supports 12th Generation Intel Core / Pentium Gold / Celeron)
Max RAM Size 64 GB
RAM Supported 2 DIMM slots - DDR4, non-ECC, unbuffered
Storage Ports 4 x SATA-600, 2 x M.2
USB / FireWire Ports 4 x USB 3.2 Gen 2 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 3 x USB 2.0 via headers)
Audio HD Audio (8-channel)
LAN Gigabit Ethernet
General
Product Type Motherboard - micro ATX
Chipset Type Intel H610
Processor Socket LGA1700 Socket
Max Processors Qty 1
Compatible Processors (supports 12th Generation Intel Core / Pentium Gold / Celeron)
Expansion / Connectivity
Expansion Slots 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (Key E)
Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 3.0 -connectors: 2 x M.2
Interfaces 1 x HDMI ¦ 1 x VGA ¦ 2 x USB 3.2 Gen 2 ¦ 4 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard ¦ 1 x DisplayPort ¦ 1 x PS/2 mouse ¦ 1 x LAN (Gigabit Ethernet)
Internal Interfaces 3 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x SPDIF out - header ¦ 1 x speaker - header
Power Connectors 24-pin main power connector, 8-pin ATX12V connector
Miscellaneous
Included Accessories I/O back plate, 1 x M.2 screw
Cables Included 2 x Serial ATA cable
Software Included Drivers & utilities, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Flash 3, WinRAR, Norton AntiVirus (Trial)
Width 9.6 in
Depth 8.3 in
Audio
Type HD Audio (8-channel)
Compliant Standards High Definition Audio
Features
BIOS Type AMI
BIOS Features UEFI BIOS, ASUS EZ Flash 3
Sleep / Wake Up Wake on LAN (WOL), wake on PME
Hardware Features Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS Fan Xpert 2+, LANGuard, Lighting Control, overvoltage protection, ASUS 5X Protection III, ASUS SafeSlot Core, Intel Turbo Boost Max Technology 3.0, Armoury Crate, ASUS Control Center Express (ACC Express)
LAN
Network Interfaces Gigabit Ethernet
Supported RAM
Max Size 64 GB
Technology DDR4
Bus Clock 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3200 MHz
Supported RAM Integrity Check Non-ECC
Registered or Buffered Unbuffered
Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
