\viewkind4\uc1\pard\lang1033\f0\fs17 Main Specifications

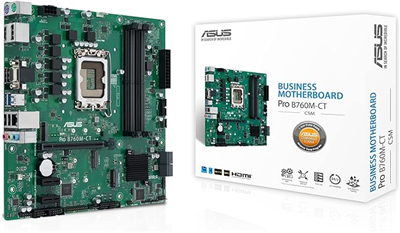

\par Product Description\tab ASUS Pro B760M-CT-CSM - motherboard - micro ATX - LGA1700 Socket - B760
\par Product Type\tab Motherboard - micro ATX
\par Chipset Type\tab Intel B760
\par Processor Socket\tab 1 x LGA1700 Socket
\par Compatible Processors\tab (supports 12th Generation Intel Core / Pentium Gold / Celeron)
\par Max RAM Size\tab 128 GB
\par RAM Supported\tab 4 DIMM slots - DDR5, non-ECC, unbuffered
\par Storage Ports\tab 4 x SATA-600 (RAID), 2 x M.2
\par USB / FireWire Ports\tab 2 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
\par Audio\tab HD Audio (8-channel)
\par LAN\tab Gigabit Ethernet
\par Pricing Type\tab ASUS Corporate Stable Model (CSM)
\par Manufacturer Warranty\tab 3-year warranty
\par General
\par Product Type\tab Motherboard - micro ATX
\par Chipset Type\tab Intel B760
\par Processor Socket\tab LGA1700 Socket
\par Max Processors Qty\tab 1
\par Compatible Processors\tab (supports 12th Generation Intel Core / Pentium Gold / Celeron)
\par Expansion / Connectivity
\par Expansion Slots\tab 1 x CPU \'a6 4 x DIMM 288-pin \'a6 1 x PCIe 4.0 x16 \'a6 2 x PCIe 3.0 x1 \'a6 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) \'a6 1 x M.2 socket (for WLAN)
\par Storage Interfaces\tab SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 \'a6 PCIe 4.0 -connectors: 2 x M.2
\par RAID Features\tab Intel Rapid Storage Technology
\par Interfaces\tab 1 x HDMI \'a6 1 x DisplayPort \'a6 1 x VGA \'a6 2 x USB 3.2 Gen 1 \'a6 2 x USB 2.0 \'a6 1 x LAN (Gigabit Ethernet) \'a6 1 x headphones output - mini-jack \'a6 1 x audio line-in - mini-jack \'a6 1 x microphone - mini-jack \'a6 1 x PS/2 keyboard \'a6 1 x PS/2 mouse
\par Internal Interfaces\tab 4 x USB 2.0 - header \'a6 2 x USB 3.2 Gen 1 - header \'a6 1 x USB-C 3.2 Gen 1 - header \'a6 1 x audio - header \'a6 2 x serial - header
\par Power Connectors\tab 24-pin main power connector, 8-pin ATX12V connector
\par Manufacturer Warranty
\par Service & Support\tab Limited warranty - 3 years
\par Miscellaneous
\par Included Accessories\tab IO shield, ACC Express Activation Key Card, 2 x M.2 screw package
\par Cables Included\tab 2 x Serial ATA cable
\par Software Included\tab ASUS Control Center Express
\par Compliant Standards\tab FCC, RoHS, KC, NIST SP800-147, DisplayPort 1.4, NIST SP800-193
\par Width\tab 9.6 in
\par Depth\tab 9.6 in
\par Pricing Type\tab ASUS Corporate Stable Model (CSM)
\par Audio
\par Type\tab HD Audio (8-channel)
\par Compliant Standards\tab High Definition Audio
\par Features
\par Sleep / Wake Up\tab Wake on LAN (WOL), wake on PME
\par Hardware Features\tab ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, Intel Turbo Boost Technology 2.0, Preboot eXecution Environment (PXE), overcurrent protection, LANGuard, Trusted Platform Module (TPM) 2.0, Intel Turbo Boost Max Technology 3.0, ASUS Self Recovering BIOS, ASUS Event Log, ASUS Commercial BIOS kit, ASUS OptiMem II, Windows 11 compatible, ASUS Boot Defender, anti-moisture coating
\par LAN
\par Network Interfaces\tab Gigabit Ethernet
\par Supported RAM
\par Max Size\tab 128 GB
\par Technology\tab DDR5
\par Bus Clock\tab 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.)
\par Supported RAM Integrity Check\tab Non-ECC
\par Registered or Buffered\tab Unbuffered
\par Features\tab Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
