Description:Main Specifications

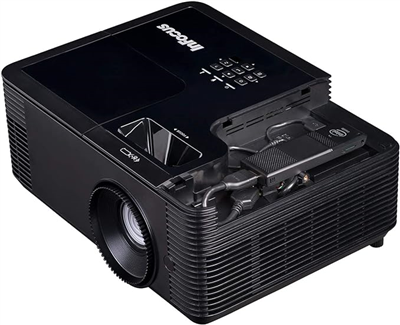

Product Description InFocus IN138HD - DLP projector - 3D
Device Type DLP projector - 1080p
3D Capable Yes (3D glasses sold separately)
Built-in Devices Keypad
Microdisplay DMD Chip
Brightness 4000 lumens
Contrast Ratio 28500:1
Resolution Full HD (1920 x 1080)
Native Aspect Ratio 16:9
Color Support 1.07 billion colors
Lens Shift Direction Vertical
Lamp Type 220 Watt
Lamp Life Cycle Up to 15000 hour(s)
Video Input (NTSC, SECAM, PAL, PAL-N, PAL-M, NTSC 4.43)
Video Modes 480p, 720p, 1080i, 1080p, 480i, 576i, 576p
Speakers Speaker(s) - integrated
Power AC 120/230 V (50/60 Hz)
Power Consumption Operational 300 Watt
Dimensions (WxDxH) 9.3 in x 12.3 in x 4.9 in
Weight 7.05 lbs
General
Device Type DLP projector - 1080p
3D Capable Yes (3D glasses sold separately)
Built-in Devices Keypad
Networking Ethernet
Expansion / Connectivity
Interfaces 1 x audio line-in - mini-phone 3.5 mm ¦ 1 x composite video input - RCA ¦ 1 x USB - 4 pin USB Type A ¦ 1 x VGA input - 15 pin HD D-Sub (HD-15) ¦ 3 x HDMI input - 19 pin HDMI Type A ¦ 1 x VGA output - 15 pin HD D-Sub (HD-15) ¦ 1 x audio line-out - mini-phone 3.5 mm ¦ 1 x serial RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x network - RJ-45 (management) ¦ 1 x 3D Sync
Miscellaneous
Included Accessories Wireless remote control
Cables Included 1 x HDMI cable - 6 ft
Security Features Security lock slot (cable lock sold separately)
Security Slot Type Kensington security slot
Power
Power Source AC
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 300 Watt
Power Consumption Stand by 1.8 Watt
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 - 85% (non-condensing)
Sound Emission (Economic Mode) 21 dBA
Video Input
TV System NTSC, SECAM, PAL, PAL-N, PAL-M, NTSC 4.43
Video Interfaces VGA, HDMI, composite video
Video Modes 480p, 720p, 1080i, 1080p, 480i, 576i, 576p
Dimensions & Weight
Width 9.3 in
Depth 12.3 in
Height 4.9 in
Weight 7.05 lbs
Dimensions & Weight (Shipping)
Shipping Width 13.3 in
Shipping Depth 15.7 in
Shipping Height 7.7 in
Shipping Weight 9.92 lbs
Projector
Microdisplay DMD Chip
Brightness 4000 lumens
Contrast Ratio 28500:1
Image Size 27 in - 264 in
Projection Distance 3.3 ft - 33 ft
Throw Ratio 1.12 - 1.47:1
Resolution Full HD (1920 x 1080) (native) / 1920 x 1200 (resized)
Native Aspect Ratio 16:9
Color Support 1.07 billion colors
Max Sync Rate (V x H) 120 Hz x 97.6 kHz
Lamp Type 220 Watt
Lamp Life Cycle Up to 15000 hour(s)
Controls & Adjustments Keystone correction, lens shift dial (vertical)
OSD Languages Danish, Hindi, Hungarian, Czech, Indonesian, Thai, Chinese (traditional), Chinese (simplified), Vietnamese, Farsi, English, German, French, Italian, Norwegian, Portuguese, Polish, Finnish, Russian, Spanish, Dutch, Turkish, Arabic, Romanian, Japanese, Korean, Malay, Filipino
Features 6-segment color wheel, BrilliantColor, Crestron RoomView, AMX Device Discovery, DLP Link, TechStation, powered HDMI
Lens
Focus Type Manual
Lens Aperture F/2.5-2.67
Zoom Factor 1.3x
Keystone Correction Direction Horizontal
Vertical Keystone Correction -40 / +40
Lens Shift Direction Vertical
Vertical Lens Shift 116% / 5%
Speakers
Type Integrated
Sound Output Mode Mono
Output Power / Channel 10 Watt
Speakers 1 x mixed channel
