Description:Main Specifications

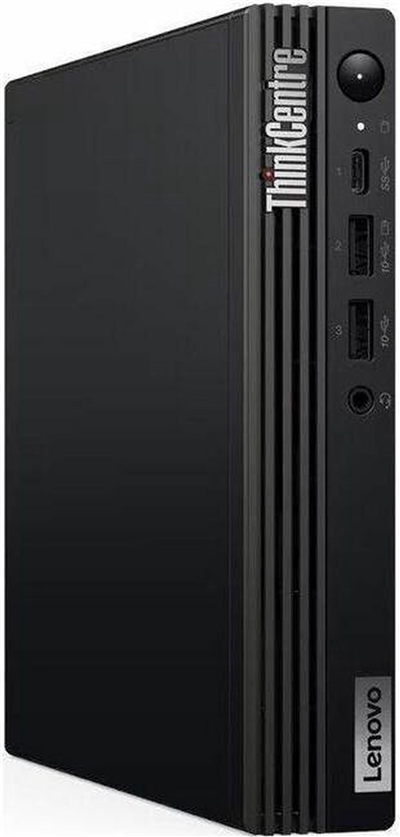

Product Description Lenovo ThinkCentre M70q Gen 5 - tiny Core i3 i3-14100T 2.7 GHz - 16 GB - SSD 256 GB - English
Type Personal computer - tiny
Localization Language: English / region: United States
Processor Intel Core i3 (14th Gen) i3-14100T / 2.7 GHz (up to 4.4 GHz, (Quad-Core)
Cache Memory 12 MB
Cache Per Processor 12 MB
RAM 16 GB (installed) / 64 GB (max) - DDR5 SDRAM
Hard Drive SSD 256 GB - PCI Express 4.0 x4 - M.2 2280 - TCG Opal Encryption, NVM Express (NVMe)
Optical Storage No optical drive
Graphics Controller Intel UHD Graphics 730 shared video memory (UMA)
Networking 1GbE, 802.11a, Wi-Fi 5, Wi-Fi 6E, 802.11b/g/n, Bluetooth 5.3
Keyboard English
Power (50/60 Hz)
OS Provided Windows 11 Pro
Color Raven black
Dimensions (WxDxH) 7 in x 7.2 in x 1.4 in
Weight 2.76 lbs
Manufacturer Selling Program Lenovo TopSeller
Environmental Standards ENERGY STAR Qualified EPEAT Silver
Carbon Footprint 253 kg carbon emissions
Manufacturer Warranty Limited warranty - 3 years - on-site
General
Type Personal computer
Product Form Factor Tiny
Built-in Devices Speaker
Embedded Security Discrete Trusted Platform Module (TPM 2.0) Security Chip
Color Raven black
Localization Language: English / region: United States
Expansion / Connectivity
Slots 1 (total) / 0 (free) x M.2 Card (for WLAN) ¦ 2 (total) / 1 (free) x M.2 Card (for SSD)
Interfaces 3 x USB 3.2 Gen 2 (1 front, 3 rear) ¦ 1 x USB 3.2 Gen 2 (1 in front) (Always On, fast-charging (5V, 2.1A)) ¦ 1 x USB-C 3.2 Gen 1 (1 in front) (data transfer, 5V 0.9A charging) ¦ 1 x headphones/microphone (1 in front) ¦ 1 x USB 2.0 (1 rear) ¦ 1 x USB 3.2 Gen 1 (1 rear) ¦ 1 x DisplayPort 1.4a ¦ 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) (1 rear) ¦ 1 x DisplayPort 1.4
Manufacturer Warranty
Service & Support Limited warranty - 3 years - on-site
Miscellaneous
Included Accessories Vertical stand
Theft/Intrusion Protection Security lock slot (cable lock sold separately), chassis intrusion switch
Security Slot Type Kensington security slot
Compliant Standards RoHS, Energy-Related Products (ErP) Lot 3, Energy-Related Products (ErP) Lot 7, TCG Certified
Manufacturer Selling Program Lenovo TopSeller
RAM
Installed Size 16 GB (installed) / 64 GB (max)
Technology DDR5 SDRAM
Effective Memory Speed 4800 MHz
Rated Memory Speed 4800 MHz
Form Factor SO-DIMM 262-pin
Slots 2 (total) / 1 (empty)
Features Dual channel memory architecture
Configuration Features 1 x 16 GB
Networking
Interface (Bus) Type M.2 Card
Ethernet Controller Intel I219-LM
Wireless LAN Supported Yes
Wireless NIC Intel Wi-Fi 6E AX 211
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 5.3
Features Wake on LAN (WoL), dual stream (2x2)
Power
Device Type Power adapter
Voltage Required AC 100-240 V (50/60 Hz)
Power Provided 65 Watt
Efficiency 89%
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 95 °F
Humidity Range Operating 20 - 80%
Cache Memory
Installed Size 12 MB
Cache Per Processor 12 MB
Optical Storage
Type No optical drive
Monitor
Monitor Type None.
Graphics Controller
Graphics Processor Intel UHD Graphics 730 shared video memory (UMA)
Video Interfaces HDMI, DisplayPort
Max Monitors Supported 3
Audio Output
Compliant Standards High Definition Audio
Operating System / Software
OS Provided Windows 11 Pro English
Hard Drive
Type SSD - M.2 2280
Capacity 1 x 256 GB
Interface Type PCI Express 4.0 x4
Features TCG Opal Encryption, NVM Express (NVMe)
Input Device
Type Mouse, keyboard
Dimensions & Weight
Width 7 in
Depth 7.2 in
Height 1.4 in
Weight 2.76 lbs
Dimensions & Weight (Shipping)
Shipping Width 19.3 in
Shipping Depth 9.8 in
Shipping Height 5 in
Shipping Weight 6.28 lbs
Keyboard
Keyboard Name Lenovo Traditional Keyboard
Interface USB
Localization & Layout English
Mouse
Mouse Name Lenovo Calliope Mouse
Interface USB
Processor / Chipset
CPU Intel Core i3 (14th Gen) i3-14100T
Clock Speed 2.7 GHz
Max Turbo Speed 4.4 GHz
Number of Cores Quad-Core
CPU Qty 1
Max CPU Qty 1
Chipset Type Intel Q670
Sustainability Information
EPEAT Compliant EPEAT Silver
ENERGY STAR Certified Yes
ENERGY STAR Version 8.0
Carbon Footprint 253 kg carbon emissions
Total CF/unit Standard Deviation (kg CO2e) 50
PAIA Version 1.4.0
