Description:Main Specifications

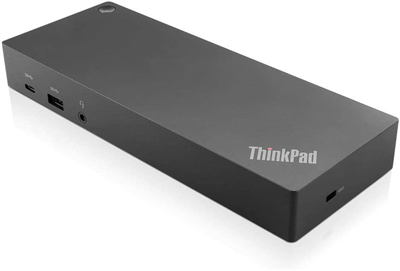

Product Description Lenovo ThinkPad Hybrid USB-C with USB-A Dock - docking station - USB-C - 2 x HDMI, 2 x DP - GigE
Product Type Docking station
Docking Interface USB-C
Video Interfaces 2 x HDMI, 2 x DP
Dimensions (WxDxH) 8.3 in x 3.1 in x 1.2 in
Weight 16.75 oz
Localization United States
Networking Gigabit Ethernet
Power Power adapter 135 Watt
Manufacturer Warranty 3-year warranty
Designed For Miix 520-12IKB; Tablet 10; ThinkPad E480; E580; L380; L380 Yoga; L470; L480; L580; P51s; P52s; T25; T470; T470p; T470s; T480; T480s; T570; T580; X1 Carbon; X1 Tablet; X1 Yoga; X270; X280; ThinkPad Yoga 370
General
Product Type Docking station
Width 8.3 in
Depth 3.1 in
Height 1.2 in
Weight 16.75 oz
Localization United States
Expansion / Connectivity
Interfaces 2 x USB 3.1 Gen 2 - 9 pin USB Type A ¦ 1 x USB 3.1 Gen 2 with Always-on charging - 9 pin USB Type A ¦ 2 x USB 2.0 - 4 pin USB Type A ¦ USB 3.1 Gen 2 - 24 pin USB-C ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x audio / video - DisplayPort - 20 pin DisplayPort ¦ 2 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x audio - headphones/microphone - mini-phone 3.5 mm 4-pole
Manufacturer Warranty
Service & Support Limited warranty - 3 years
Miscellaneous
Cables Included 1 x USB-C cable with USB-C to USB-A dongle - external
Features Security lock slot (cable lock sold separately), wake on LAN, Preboot Execution Environment (PXE) support, MAC address pass-through
Compliant Standards TUV, VCCI, BSMI, NOM, CB, FCC, SII, KCC, ICES, cULus, Kvalitet, EAC, RCM, LoA
Networking
Data Link Protocol Gigabit Ethernet
Power
Power Device Power adapter
Power Provided 135 Watt
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 95 °F
System Requirements
OS Required Windows 10 (32/64 bits)
Dimensions & Weight (Shipping)
Shipping Width 10.6 in
Shipping Depth 6.5 in
Shipping Height 3.5 in
Shipping Weight 2.98 lbs
Compatibility Information
Designed For Lenovo 13w Yoga 82S1, 82S2 ¦ Lenovo IdeaPad 1 14IJL7 82LV ¦ Lenovo IdeaPad 1 15IJL7 82LX ¦ Lenovo IdeaPad 3 14ADA6 82KQ ¦ Lenovo IdeaPad 3 15ALC6 82MF ¦ Lenovo IdeaPad 3 15ITL6 82MD ¦ Lenovo IdeaPad 5 14ABA7 82SE ¦ Lenovo IdeaPad 5 14IAL7 82SD ¦ Lenovo IdeaPad Gaming 3 15ARH7 82SB ¦ Lenovo IdeaPad Gaming 3 15IAH7 82S9 ¦ Lenovo IdeaPad Gaming 3 15IHU6 82MG ¦ Lenovo IdeaPad Slim 7 Carbon 14ACN6 82L1 ¦ Lenovo K14 Gen 1 21CU ¦ Lenovo Lenovo Slim 7 14IAP7 82SX ¦ Lenovo ThinkBook 13s G4 IAP 21AR ¦ Lenovo ThinkBook 13x G2 IAP 21AT ¦ Lenovo ThinkBook 14 G4 ABA 21DK ¦ Lenovo ThinkBook 14 G4+ IAP 21CX ¦ Lenovo ThinkBook 15 G4 ABA 21DL ¦ Lenovo ThinkPad E14 Gen 3 20YF ¦ Lenovo ThinkPad E14 Gen 4 21E3, 21E4, 21EB ¦ Lenovo ThinkPad E15 Gen 4 21E6, 21ED ¦ Lenovo ThinkPad L13 Gen 2 21AB, 21AC ¦ Lenovo ThinkPad L13 Gen 3 21B9 ¦ Lenovo ThinkPad L13 Yoga Gen 3 21BB ¦ Lenovo ThinkPad L14 Gen 3 21C1, 21C2, 21C5, 21C6 ¦ Lenovo ThinkPad L15 Gen 3 21C7 ¦ Lenovo ThinkPad P1 Gen 5 21DC ¦ Lenovo ThinkPad P14s Gen 3 21AK ¦ Lenovo ThinkPad P15v Gen 2 21AA ¦ Lenovo ThinkPad P15v Gen 3 21D8, 21D9 ¦ Lenovo ThinkPad T14 Gen 3 21AH ¦ Lenovo ThinkPad T14s Gen 2 20XF, 20XG ¦ Lenovo ThinkPad T14s Gen 3 21BR, 21BS, 21CR ¦ Lenovo ThinkPad T15p Gen 2 21A8 ¦ Lenovo ThinkPad T15p Gen 3 21DA ¦ Lenovo ThinkPad T16 Gen 1 21BV ¦ Lenovo ThinkPad X1 Carbon Gen 10 21CB, 21CC ¦ Lenovo ThinkPad X1 Nano Gen 2 21E8 ¦ Lenovo ThinkPad X1 Yoga Gen 7 21CD, 21CE ¦ Lenovo ThinkPad X13 Gen 2 20XH, 20XJ ¦ Lenovo ThinkPad X13 Gen 3 21BN ¦ Lenovo ThinkPad X13 Yoga Gen 3 21AX ¦ Lenovo ThinkPad Z13 Gen 1 21D3 ¦ Lenovo V14 G2 IJL 82QX ¦ Lenovo V14 G2 ITL 82NM ¦ Lenovo V15 G2 IJL 82QY ¦ Lenovo V15 G2 ITL 82ME ¦ Lenovo V15 IML 82NQ ¦ Lenovo Yoga Duet 7 13ITL6-LTE 82Q7 ¦ Lenovo Yoga Slim 7 Carbon 14ACN6 82L0 ¦ Lenovo Yoga Slim 7 Pro 14ACH5 OD 82NK ¦ Lenovo Yoga Slim 7 Pro 14IAP7 82SV ¦ Lenovo Yoga Slim 7 Pro 16ACH6 82QQ ¦ Lenovo Yoga Slim 9 14IAP7 82T0
